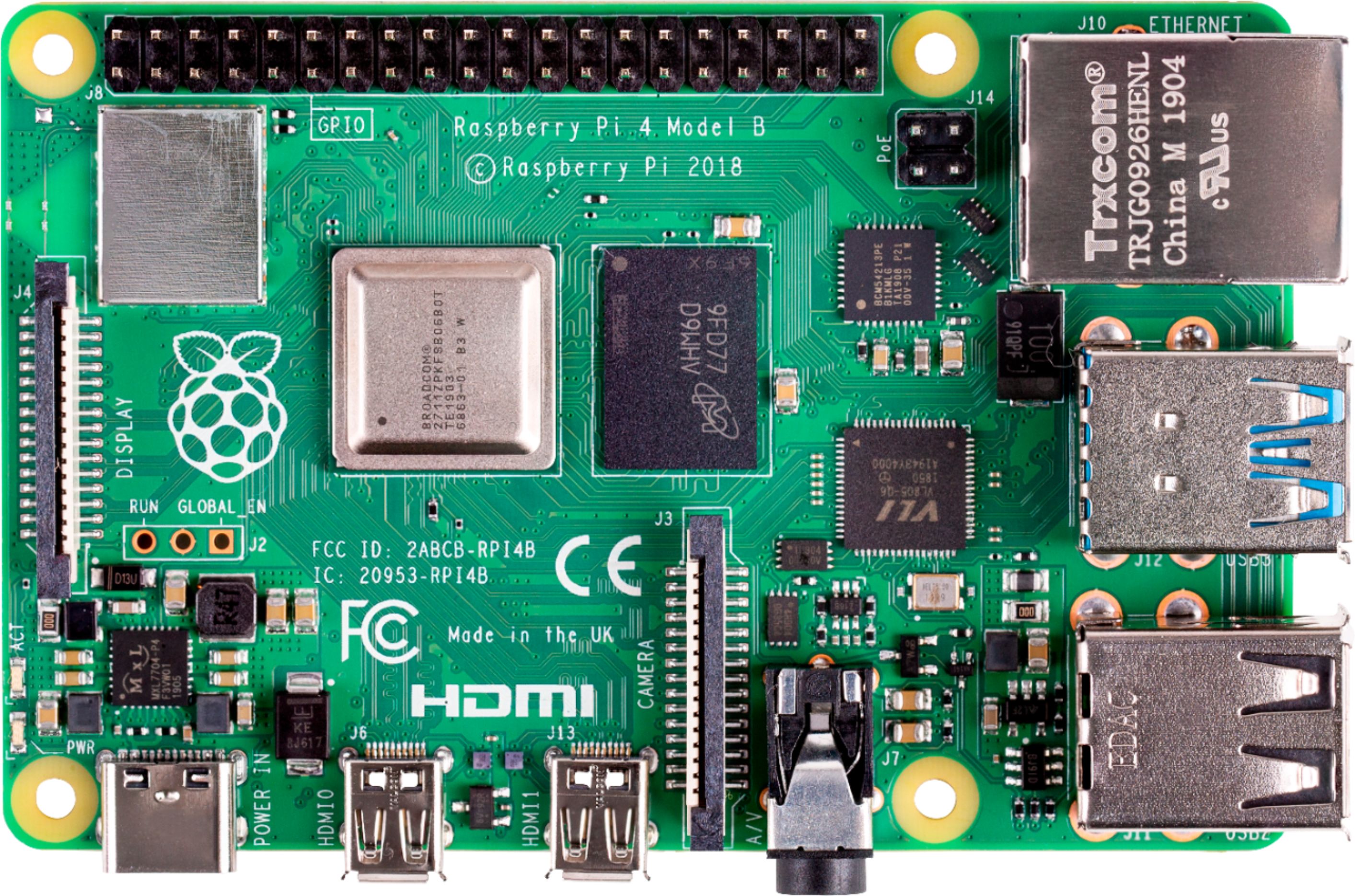

Raspberry Pi 4 Setup for Digital Modes

The Raspberry Pi is a versatile tool for amateur radio operators due to its small size, low power requirements, and exposed GPIO / serial pins. Unfortunately many of the tutorials available online need minor tweaks for the 2022-04-04 release of Raspberry Pi OS, so I’ve attempted to collect an abbreviated walkthrough for configuring a Pi 4 with direwolf sound modem, YAAC for APRS, pat for winlink, and fldigi for other digital modes.

Base OS Image

This guide is using the 2022-04-04 release of Raspberry Pi OS, 32-bit (so it would also work on a Pi Zero):

  • Download the img
  • Write the img file to a NEW SD Card

Headless Setup

Headless setup was simpler in previous releases, but the 2022-04-04 release no longer includes the default pi user. See this page for more information (particularly the “Headless Setup” section).

After verifying the image, mount the boot partition on a PC. The setup works by creating certain files in the boot partition that are handled specially when the Pi is booting.

After creating the files below, unmount the boot partition and insert the card into the Pi.

ssh

Enable headless (no display / keyboard) setup by creating a blank file named ssh in the boot partition:

touch /mnt/boot/ssh

userconf

The userconf file contains the username and encrypted password of the default user.

To create the encrypted password, use the command:

echo 'mypassword' | openssl passwd -stdin

The userconf file should look something like

johndoe:5WMdYxc1LBvgI

johndoe is the user that will be created. The encrypted password will be different each time because it uses a salt to avoid reverse lookup (rainbow) tables.

wpa_supplicant.conf

I typically connect via wired ethernet, but if you depend on wireless connectivity, create a file called wpa_supplicant.conf that provides details and key for the desired wifi network.

ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
country=US
update_config=1
network={
    ssid="johnwifi"
    psk="put the secret key here"
}

Initial Configuration

Determine the Pi’s IP address by looking at your router configuration, or (maybe) ping raspberrypi, and connect to it.

Update all Packages

This ensures that any patches since the OS image was released are applied before installing any further software.

sudo apt-get update && sudo apt-get upgrade -y

Remote Graphical Desktop

Raspberry Pi OS includes a VNC server that can be enabled in raspi-config > 3. Interface Options > VNC.

VNC viewer applications are available for most platforms.

Install xrdp (optional)

Alternatively, xrdp allows remote desktop access using tools commonly found preinstalled on Windows and Linux.

sudo apt-get install -y xrdp

Unfortunately the package is broken out of the box on recent releases, but isn’t too hard to fix.

Edit /etc/X11/xrdp/xorg.conf, and change the existing line to remove the DRMDevice path.

Before

Option "DRMDevice" "/dev/dri/renderD128"

After

Option "DRMDevice" ""

Enable the Service

sudo systemctl enable xrdp
sudo systemctl reboot

Install direwolf

Steps taken from the repo README

sudo apt-get install -y git gcc g++ make cmake libasound2-dev libudev-dev
cd ~
git clone https://www.github.com/wb2osz/direwolf
cd direwolf
# to install pre-release version, checkout `dev` branch (bugs may exist)
# git checkout dev
mkdir build && cd build
cmake ..
make -j4
sudo make install
make install-conf

Edit Launcher

Edit /usr/share/applications/direwolf.desktop

Add a -p to the Exec line to create a pty for kissattach (pat) to use.

Config

Direwolf configuration varies widely, either GPIO or CM108 style PTT is recommended.

Either ~/direwolf.conf or /etc/direwolf.conf is recommended.

Install fldigi

sudo apt-get install -y fldigi

Broken gpio script

To get flrig/fldigi to use the raspi GPIO pins, ensure the following script exists at /usr/bin/gpio (and make it executable! chmod a+x /usr/bin/gpio)

#!/usr/bin/env bash
# Alias for old gpio binary for use with
# fldigi GPIO PTT under RaspiOS Bullseye.
# gpio was from the wiringpi package, which
# is not available in RaspiOS Bullseye.
#
# User running this script must be root
# or a member of the gpio group.
#
# Requires 2 arguments:
# $1 : export|unexport
# $2 : BCM GPIO number

case $2 in
   17|18|27|22|23|24|25|4|5|6|13|19|26|12|16|20|21)
      case $1 in
         export)
            echo $2 >/sys/class/gpio/export
	        sleep 0.1
            echo "out" >/sys/class/gpio/gpio${2}/direction
            ;;
         unexport)
            echo $2 >/sys/class/gpio/unexport
            ;;
         *)
            exit 1
            ;;
      esac
      ;;
   *)
      exit 1
      ;;
esac
exit 0

Install YAAC

YAAC is a cross-platform java-based APRS client that provides advanced features.

apt-get install default-jre

Extract the YAAC.zip file

In this guide, I suggest extracting YAAC to ~/code/YAAC, but if you’re using a different user, or would prefer a different location, adjust the paths in the .desktop file accordingly.

mkdir -p ~/code/YAAC
cd ~/code/YAAC
unzip ~/Downloads/YAAC.zip

Create a desktop entry

/usr/local/share/applications/yaac.desktop (replace path to YAAC.jar appropriately)

[Desktop Entry]
Name=YAAC
Comment=Yet Another APRS client
Exec=/usr/bin/java -jar /home/johndoe/code/YAAC/YAAC.jar
Icon=yaaclogo64.ico
StartupNotify=true
Terminal=false
Type=Application
Categories=HamRadio
Keywords=Ham Radio;APRS;KISS;AGWPE;AX.25

Install pat

Download the armhf (raspbery pi) package for the latest release at https://github.com/la5nta/pat/releases.

Install the package directly:

dpkg -i ~/Downloads/pat_0.12.1_linux_armhf.deb

IMPORTANT: Hold the package, so it doesn’t update unexpectedly:

apt-mark hold pat

Some repos, like ubuntu have renamed pat to pat-winlink and made other modifications that might differ from the official docs.

Install ax25 stack

Use pat with a TNC requires ax25 support packages and a small bit of configuration.

apt-get install libax25 ax25-tools

For additional programs used in connected mode packet, like axlisten and axcall, also install the ax25-apps package

apt-get install ax25-apps

Create the port

Edit /etc/ax25/axports to add the following line:

wl2k N0CALL 1200 255 2 pat winlink

In this line, replace N0CALL with your actual callsign.

Two other values in the port definition may need some adjustment based on the situation.

  • 255 in the example is the paclen or MTU and controls the packet size. For noisy or distant connections a lower number (128) may improve reception in exchange for slower potential transfer speed. (Although if the link is poor, retransmissions of larger MTU packets will decimate the throughput).
  • 2 in the example is the window size, or maximum number of outstanding packets. Larger numbers allow more unacknowledged data to be sent and may improve performance on high quality channels. Smaller numbers can improve reliability in sub-optimal conditions.

See man axports(5) for more information

Create support scripts

/usr/bin/patattach.sh

#!/usr/bin/env bash
kissattach -m ${PACLEN:-255} $(readlink /tmp/kisstnc) ${AXPORT:-wl2k} \
  && kissparms -c 1 -p ${AXPORT:-wl2k}

/usr/bin/pathttp.sh

#!/usr/bin/env bash
sudo /usr/bin/patattach.sh
/usr/bin/pat http "$@"

After creating the scripts, make them executable:

chmod a+x /usr/bin/patattach.sh /usr/bin/pathttp.sh

(Optional) Add /usr/bin/patattach.sh to /etc/sudoers file to avoid password prompt.

johndoe ALL=(ALL) NOPASSWD: /usr/bin/patattach.sh

Create the desktop entry

/usr/local/share/applications/pat.desktop

[Desktop Entry]
Name=pat winlink HTTP server
Comment=web-based winlink client
Exec=/usr/bin/lxterminal /usr/bin/pathttp.sh
StartupNotify=true
Terminal=true
Type=Application
Categories=HamRadio
Keywords=Ham Radio;APRS;KISS;AGWPE;AX.25;Winlink

Configure pat

Before pat will start up, run pat configure, and complete the steps.

Ready to Go

The system should be in good shape for manual-start packet use.

Configuring systemd units to run these programs on startup may be covered in the future.
